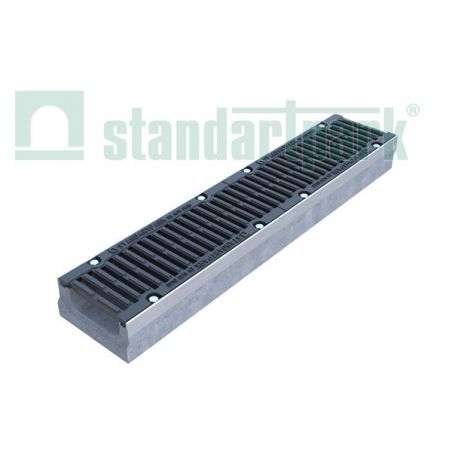

Tray concrete with cast-iron grate DN150, H100 DRIVE

Tray concrete with iron bars drainage slit and the reinforcing piece (set) DN150, h100 - series DRIVE

2,132.80 грн

(2,132.80 грн 1 шт.)


drainage systems strengthened DRIVE series is the optimal combination of cost and performance. Trays are used to collect and divert water from the extended large surfaces made of concrete, reinforced with fiberglass, equipped with reinforcing nozzles of galvanized steel, which molded into the side of the tray and the water inlet slit gratings of ductile iron. Have load class D, which corresponds to 400kN = 40 m advan uschestva series DRIVE:.

1. A reliable and functional bolted lattice - lattice fixes and prevents untwisting under dynamic loads, due to the special shape of the nut and seat. Fasteners are designed so that they are easy to change.

2. Reliable amplifying nozzle with mortgage anchor - provides a durable and reliable design of the tray and reinforcing it

3.. Lattices are made of ductile cast iron grade HF-50.

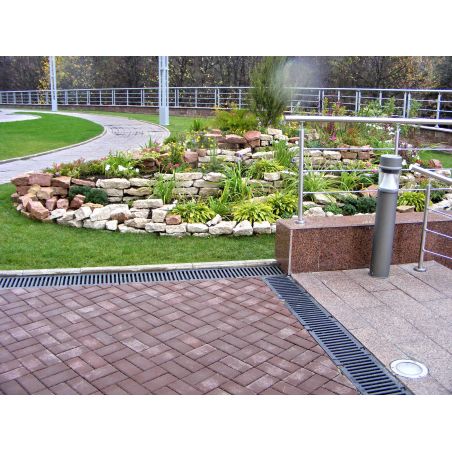

Due to its advantages, the series DRIVE trays are popular and are widely used for underground and ground parking lots, filling stations, in city streets and parks, and others. To ensure a tight seal on trays interconnected using one-component sealant based on MS-polymers. All products Standartpark certified according to international quality control system.

Product Details

Format, mm
Weight, kg
Load class
D 400
Hydraulic cross-section
