Tray BetoMax LV-11.19.23 B-slotted grille with iron RF class E and reinforcing steel nozzles, H 230 - series MAXІ

.

04100
4,085.00 грн

(4,085.00 грн За 1 комплект)

Description

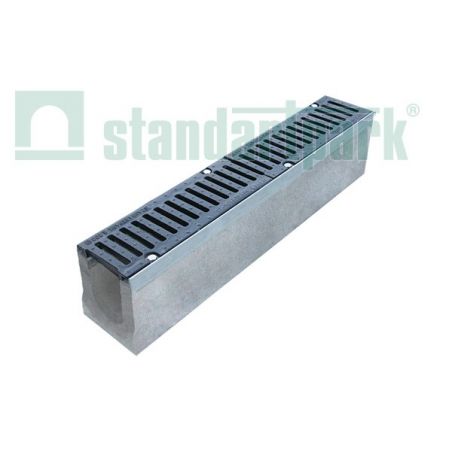

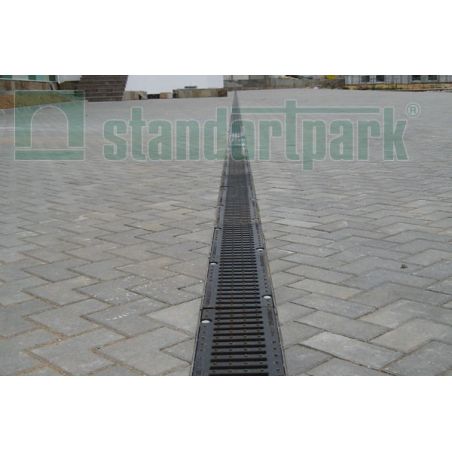

Trays fiber-concrete DN110, H230, extra strong, impact-resistant Series MAX, reinforced galvanized steel nozzles and equipped with cast-iron grating load class D400 = 40t, 60t = E600, F900 = 90t. Kits DN110 high trays, H230 are widely used in the construction and reconstruction of streets, squares, parks and recreation, railway stations, airports, and gutters enhanced series are equipped with a gas station, service station, trucks, warehouses and terminals, industrial areas and highways, bus and commercial parks where high mechanical and dynamic loads, as well as places with heavy traffic. Trays enhanced series MAX reserved nozzles of galvanized steel, which molded into the side of the tray and are conjugate with embedded anchors reinforcing tray. The design of anchors is provided the possibility of replacing a fixing bolt and a nut, which makes the system maintainability and durable, well-designed system grating attachment to the tray avoids destruction of the channel walls under the action of large surface loads, made trays amplified series of fiber concrete, polymer concrete and plastic, and also with different hydraulic cross sections (DN 110, 160, 200, 300 and 500) and heights (h from 130 to 600).

Accessibility MAX series DN110.

1. made to order any height from 130 to 230 mm with a difference in height between adjacent trays from 5 mm.

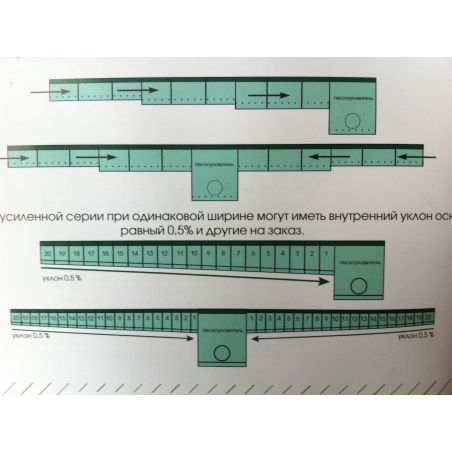

2. Is made with an internal bias from 5 to 50 mm.

3. Can be made with vertical drainage, the ability to connect to a pipe diameter of 110mm.

Product Details

Format, mm
1000х185х230
Weight, kg
70
Length, m
1,0
Load class
E 600
Hydraulic cross-section
DN110
