Tray Polymer-DN110 with cast-iron...

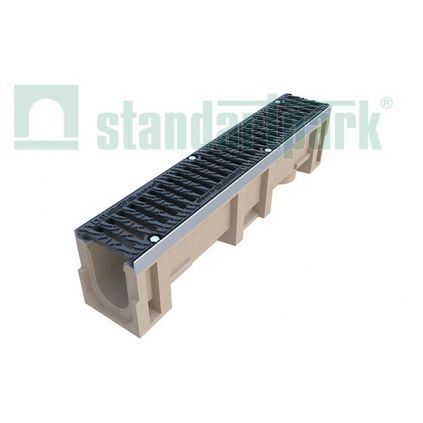

Tray Polymer-DN110 with cast-iron grating, H230

A tray of polymer concrete with cast-iron grate drainage slit "protector" and reinforcing steel nozzles (set) DN 110, H 230 - Series MAX


2,486.65 грн

(2,486.65 грн 1 шт.)


Trays Polymer, extra strong, impact-resistant reinforced Series MAX - is a series of trays, reinforced galvanized steel nozzles and equipped with cast-iron grating load class D400 = 40t, 60t = E600, F900 = 90t. Complete sets of high-trays are widely used in the construction and reconstruction of streets, squares, parks and recreation, railway stations, airports, and gutters enhanced series are equipped with a gas station, service station trucks, warehouses and terminals, industrial areas and highways, bus and truck park where high mechanical and dynamic loads, as well as places with heavy traffic. Trays enhanced series MAX reserved nozzles of galvanized steel, which molded into the side of the tray and are conjugate with embedded anchors reinforcing tray. The design of anchors is provided the possibility of replacing a fixing bolt and a nut, which makes the system maintainability and durable, well-designed system grating attachment to the tray avoids destruction of the channel walls under the action of large surface loads, made trays amplified series of fiber concrete, polymer concrete and plastic, and also with different hydraulic cross sections (DN 110, 160, 200 and 300) and heights (h from 230 to 400). This tray is made of polymer - a material which in comparison with the cement concrete (fiber-reinforced concrete) possess greater tensile strength, less brittleness and better deformability. They have a higher; permeability, frost resistance, abrasion resistance, resistance to corrosive liquids and gases, and much less by weight, has a load class D 400 = 40 m, supplied standard set: tray with reinforcing nozzles, two lattice iron slot length 500 mm (type HF-50 iron ), fasteners (bolts and nuts). The peculiarity of this tray is an updated design of the iron fence that simulates the trace of the tire, but has a lower load class and price. To ensure a tight seal between the trays using a one-component sealant based on MS-polymers. All products Standartpark certified according to international quality control system.

Product Details

Format, mm
Weight, kg
Length, m
Load class
D 400
Hydraulic cross-section
