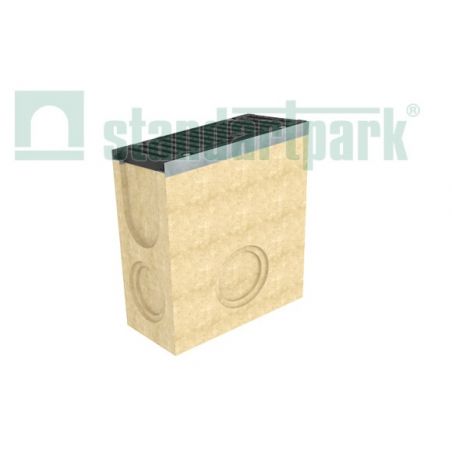

trash box sectional polymer concrete slotted grating cast iron c-enhancing attachments (upper part) of 0.5 m, DN200 H600 - for surface water drainage - MAX series.

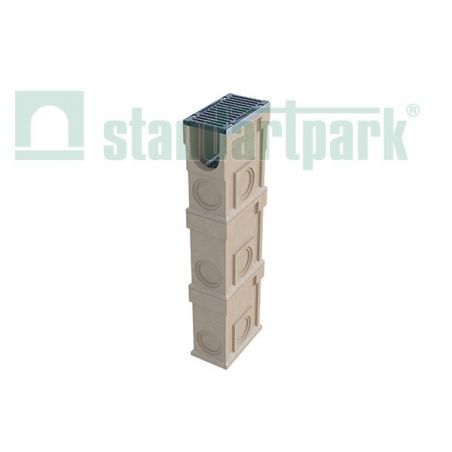

When it becomes necessary to increase the height trashbox used sectional grit chambers, consisting of three sections: upper, middle and lower, which are set against each other and are used as revision or drainage wells of different dimensions, load classes (D400 = 40t, E600 = 60t , F900 = 90t) and depths. Trash box is the link between the surface drainage and storm sewer. But other than that it collects sand, garbage and sewage tverdodispersnye additives, thus avoiding clogging of sewer pipes. Sand and debris are collected in a galvanized trash trash box which is completed with an additional and secured at the top of the sectional trashbox yet basket facilitates cleaning trashbox. This sectional trash box extra strong reinforced series MAX is the upper part of the well is made of a polymer, compared with the cement concrete, polymer concrete and polymer-possess greater tensile strength, less brittleness and better deformability. They have a higher; permeability, frost resistance, abrasion resistance, resistance to corrosive liquids and gases, equipped with upper trashbox high strength bars made of cast iron, the edge is reinforced with steel galvanized nozzles molded into the side trashbox wall has a load class E, which corresponds to 600kN = 60 m. For formation used well with the middle part - article №07580 / 2 and the lower part - article №07580 / 3.
The advantage uschestva top of the MAX series:
1. A reliable and functional bolted lattice - lattice fixes and prevents untwisting under dynamic loads, due to the special shape of the nut and seat. Fasteners are designed so that they are easy to change.
2. Reliable amplifying nozzle with mortgage anchor - provides a durable and reliable construction trashbox and reinforces its
3.. The lattice is made of ductile cast iron grade HF-50.
4. Is able to connect with a tube diameter of 160-200 mm, and the template for the connection with the tray polimerbetonov DN 200 series MAX art.№07500 (h335), №0750009 (h335).
5. Polymer concrete trash box DN 200 MAX Series can also be equipped with a cast iron grate slot-load class F900 = 90 m., If required by the terms of your object.
Due to its advantages, grit chambers within the system of linear drainage Series MAX are popular and widely used for underground and surface parking lots, gas stations, urban streets and parks, industrial facilities, roads and others. In order to ensure hermetic compound of drainage elements among themselves, using a one-component sealant based on MS-polymers. All products Standartpark certified according to international quality control system.
