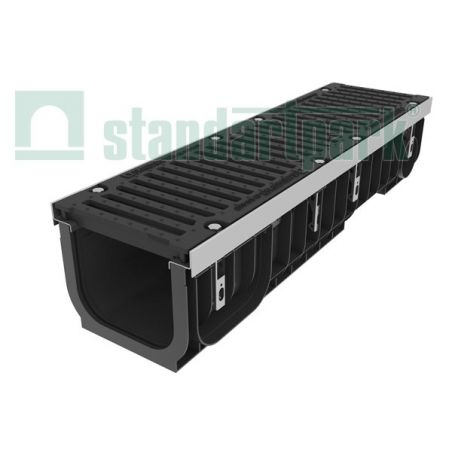

Tray plastic with a cast iron grate DN200, H235 MAX

The tray with a plastic drainage grid iron slit, with the reinforcing piece (set) DN 200, H235, - Series MAX

.

08500
8,815.00 грн

(8,815.00 грн за 1 шт)

Description

Trays of cold-resistant plastic, extra strong, impact-resistant Series MAX, resistant to aggressive environments with wide cross-section of 300 mm are used in areas with heavy traffic of passenger and freight transport and pedestrian areas, specifically designed for the removal of a large flow of rain water used in cottage construction, garages, car parks, multi-storey car parks, pedestrian walkways, sports facilities, industrial plants, chemical facilities. Trays linear drainage water is collected and withdrawn from the extended large surfaces. Simultaneously collected and conveyed to the relief surface runoff site. Currently, linear drainage systems are used in the system of stormwater. Each product is designed for a specific load class load classes will help to choose the right tray as required by your facility and to avoid problems during its further operation. Due to the increased usable channel width 300 mm, the tray 70 is able to skip l rainwater per second, a standard set supplied: a plastic tray with steel reinforcing nozzles, two lattice iron slot 500 mm long, fasteners (bolts and nuts). This tray has a load class D, - it allows to withstand 400kN = 40 m, the tray also has templates for lateral connection to the other chute, and vertical and horizontal connection to the sewer pipe of 110 mm diameter. To ensure reliable sealing compound between trays are used adhesives. All products Standartpark certified according to international quality control system.

Characteristics:

The tray is made of cold-resistant, impact-resistant, chemically resistant, thermoplastic, polymer and composite plastics. With average daily temperatures trays have a high resistance to acids and alkalis.

The lattice is made of ductile cast iron HF-50 brand.

Enhancing the nozzle is made of galvanized steel which are molded into the side of the tray and paired with embedded anchors, reinforcing the tray.

The design of the mounting anchor is provided an opportunity to replace the bolt and nut, which makes the system maintainability and durable.

Product Details

Format, mm
1000х285х230
Weight, kg
37,7
Length, m
1,0
Load class
D 400
Hydraulic cross-section
DN200
