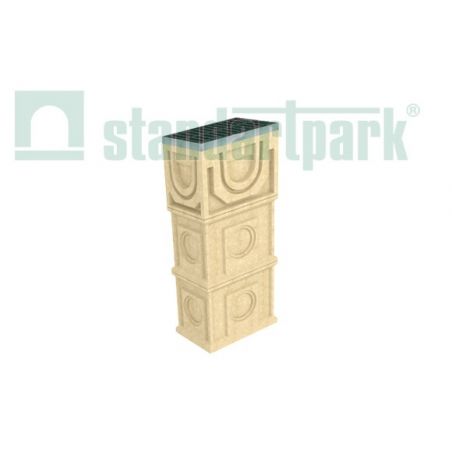

Dozhdepriemnye Polymer-enhanced series of wells MAX DN 300 are used for local (point) of collecting large water flows in areas of intense mechanical loads when there is a need to increase the height of the storm-water inlets. Sectional well consists of three sections: upper, middle and lower, which are set against each other and are used as revision or drainage wells of different sizes, load classes (E600 = 60t, F900 = 90t) and depths. Storm-water inlets is the link between the surface drainage and storm sewer, can act as trashbox, it collects sand, garbage and sewage tverdodispersnye additives, thus avoiding clogging of sewer pipes. This sectional dozhdepriemny well extra strong reinforced series MAX is the upper part of the well is made of a polymer, compared with the cement concrete, polymer concrete and polymer-possess greater tensile strength, less brittleness and better deformability. They have a higher; permeability, frost resistance, abrasion resistance, resistance to corrosive liquids and gases, equipped with high-gratings of iron, edge inlets reinforced galvanized steel nozzles molded into the side walls has a load class E, which corresponds to 600kN = 60 m., for the formation of the well used with the middle portion of the well dozhdepriemnogo - article №7770 / 2 and the lower part - article №7770 / 3.
The advantage uschestva the top of the well dozhdepriemnogo MAX Series:
1. A reliable and functional bolted lattice - lattice fixes and prevents untwisting under dynamic loads, due to the special shape of the nut and seat. Fasteners are designed so that they are easy to change.
2. Reliable amplifying nozzle with mortgage anchor - provides a durable and reliable construction of storm-water inlets and reinforces its
3.. Lattices are made of ductile cast iron grade HF-50. Gullies reinforced MAX Series can be equipped with bars F900 = iron load class of 90 t., If required by the terms of your object.
4. It is able to connect with a tube diameter of 160-200 mm. Under the order dozhdepriemnye wells can be made with templates for connecting pipes of the required diameter, and has a pattern to connect with trays of polymer concrete DN 300 MAX Series №07700 article and №0770009.
5. To facilitate the maintenance dozhdepriemnogo well in the upper part of the basket can be set in galvanized steel for collecting sand, leaves and debris.
Due to its advantages, dozhdepriemnye wells MAX series are popular and widely used for underground and surface parking lots, gas stations, urban streets and parks, industrial facilities, roads and others. In order to ensure a tight seal on all elements of drainage together, using one-component sealant based on MS-polymers. All products Standartpark certified according to international quality control system.
- Format, mm
- Weight, kg
- Load class
- E 600
- Hydraulic cross-section
